Select From List

Contents

Overview

In Magento Admin, user will often times need to select item(s) from a list of items. This pattern address the variations of list pattern.

When to Use

  • When user need to select item(s) from a list of items, and each item can be identified simply by one label

Variations

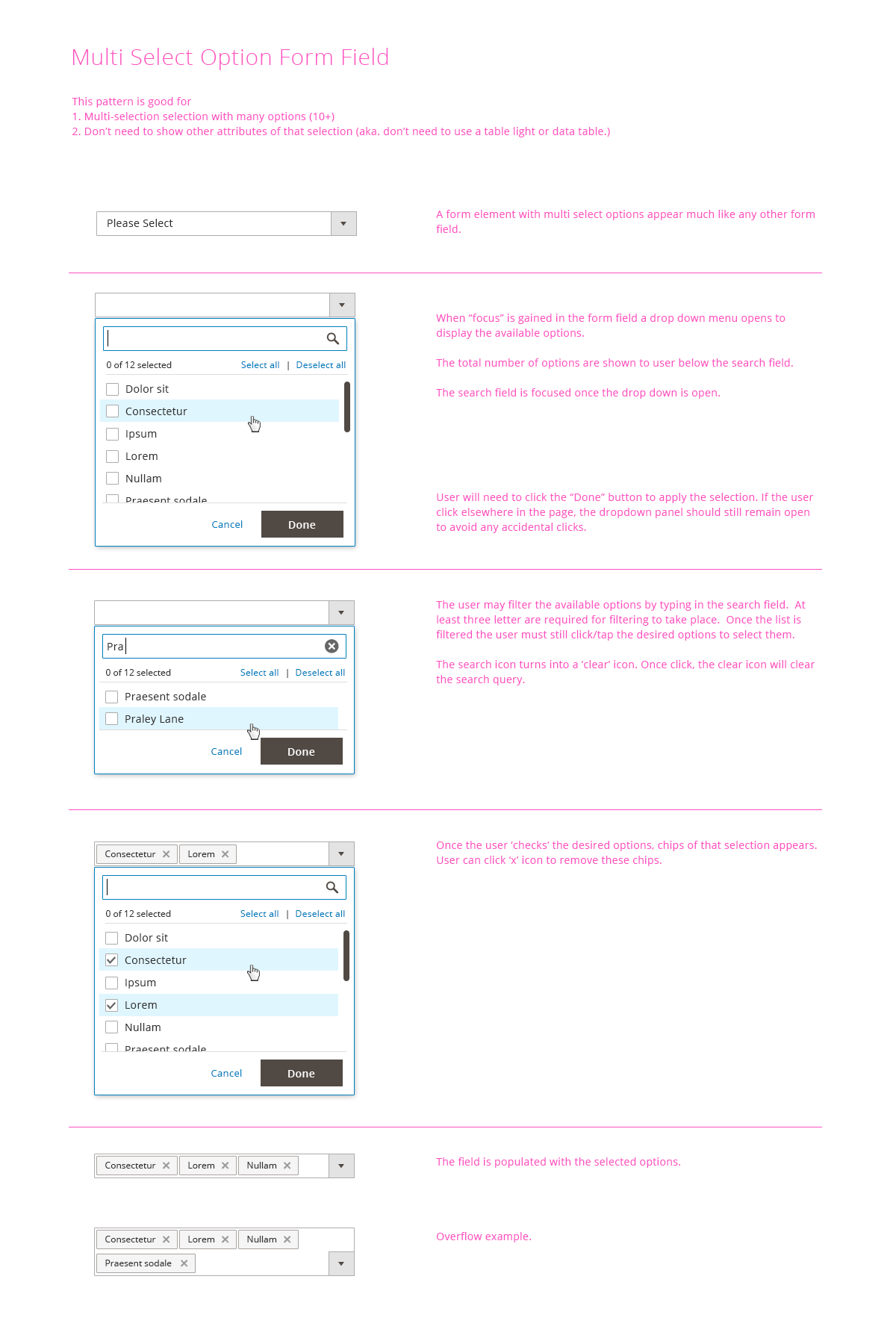

1. Multi-select Dropdown (aka ultra-selector)

This variation is good for Multi Selection with many options (10+), when the option does not need to be shown immediately or when space needs to be preserved.

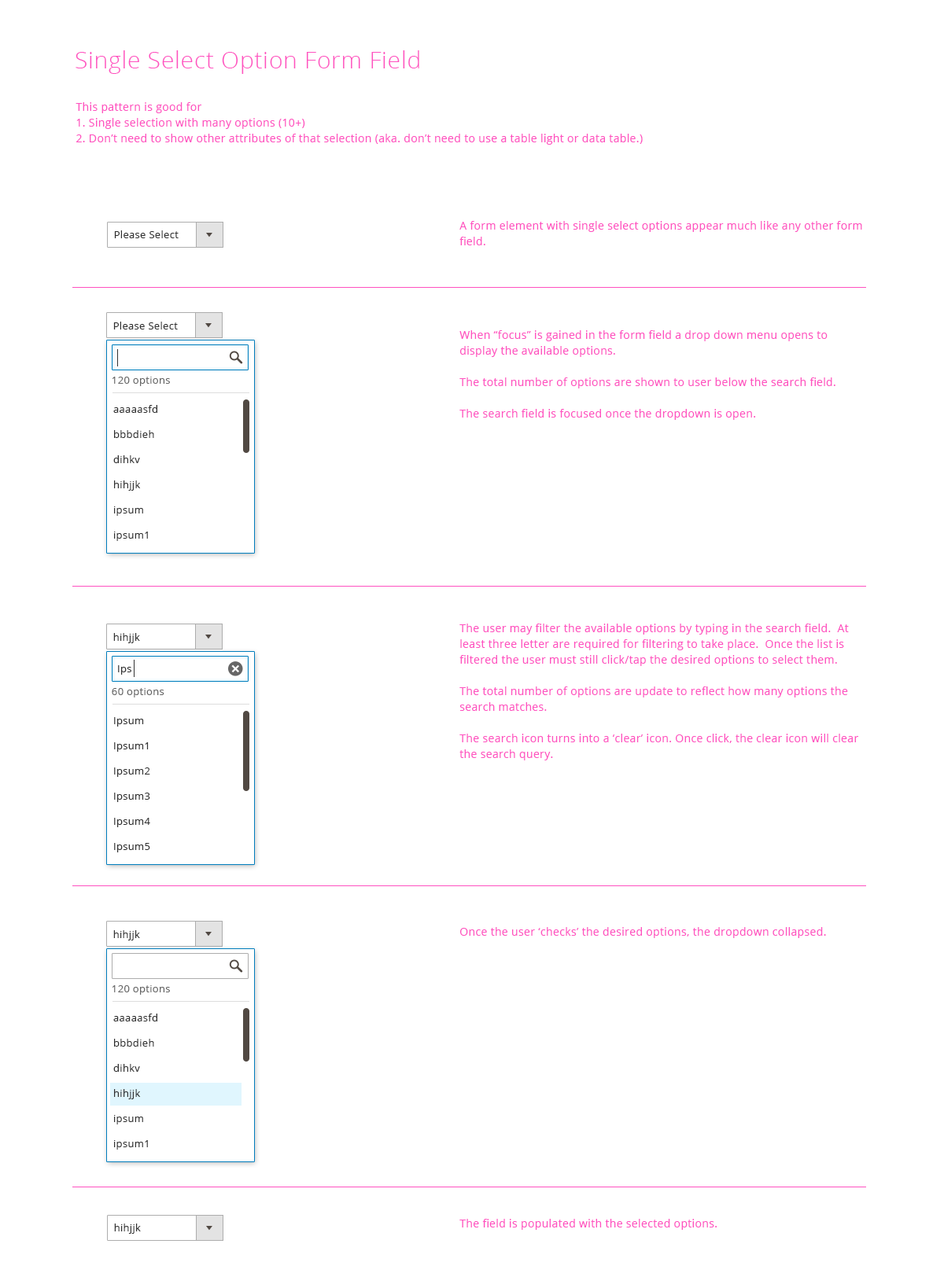

2. Single Select Dropdown

This variation is good for Single Selection with many options (10+), when the option does not need to be shown immediately or when space needs to be preserved.mmediately or when space needs to be preserved.

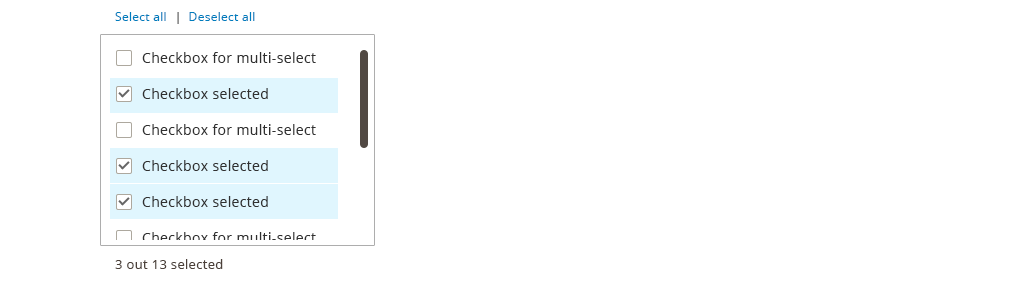

3. Multi-Select List Box

The advantage of a list box is that it exposes more options to the user. The list can be made scroll-able when space is a consideration and/or the list is long. A list box is mandatory when the list of options exceeds 6 items.

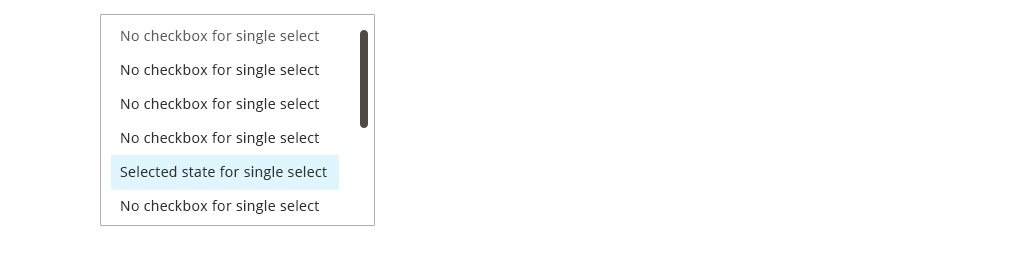

4. Single Select List Box

The advantage of a list box is that it exposes more options to the user. The list can be made scroll-able when space is a consideration and/or the list is long. A list box is mandatory when the list of options exceeds 6 items.

Accessibility

The form drop down, scroll area, and selections should be accessible via keyboard.

Follow this form control accessibility guideline: http://www.w3.org/TR/WCAG10-HTML-TECHS/#forms

Assets

PSD files can be found here: Download Variations of Select-From-List ZIP File
